Preload of ball screw ::There are 4 pre-tightening states of common screw,
A.level P0 has gap and no pre-tightening;
B.level P1 has no gap and slight pre-tightening;
C.level P2 has no gap and 3 ~ 5% dynamic load pre-tightening;
D.level P3 has no gap and 8 ~ 10 % dynamic load pre-tightening.
If the ground ball screw nut is not lubricated enough, the screw will rub, which will affect its accuracy and service life.If the ground ball screw nut has axial clearance, it will also affect the entire production process. So when there is a problem with the ball screw nut , how to maintain it?
1. Lubrication of round ball screw nut
Lubricants can improve the wear resistance and transmission efficiency of the ground ball screw. Lubricants can be divided into two categories: lubricating oil and grease. Lubricating oil is generally used in full-loss systems, and grease can be lithium-based grease. Grease is generally added to the thread raceway and the housing space where the nut is installed,and the lubricating oil is injected into the space of the nut through the oil hole on the housing.
The grease on the ground ball screw should be replaced every six months, the old grease on the screw should be cleaned, and new grease should be applied.
2. Adjustment of axial clearance

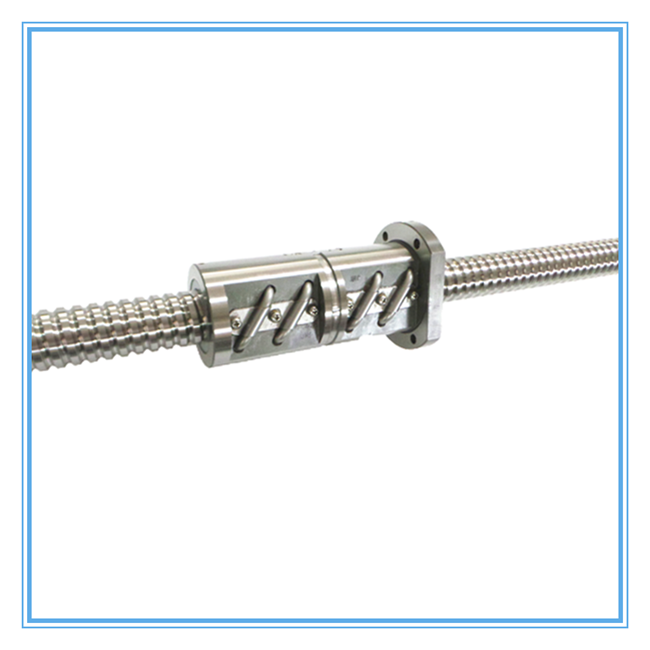

In order to ensure the reverse transmission accuracy and axial stiffness, the axial clearance needs to be removed. The method of removing the gap of the double-nut ball screw is to use the relative axial displacement of the two nuts to make the balls in the two ball nuts close to the two opposite sides of the spiral raceway.
In addition, the ground ball screwgap between the screw mounting part and the driving part must be removed. The commonly used methods for adjusting the gap of the double-nut screw are: gasket gap adjustment type, thread gap adjustment type and tooth difference gap adjustment type.
