Special shaped nuts c3 precision ball screw  according to customer drawing
Special shaped nuts c3 precision ball screw  according to customer drawing Special shaped nuts c3 precision ball screw  according to customer drawing Special shaped nuts c3 precision ball screw  according to customer drawing Special shaped nuts c3 precision ball screw  according to customer drawing Special shaped nuts c3 precision ball screw  according to customer drawing

Special shaped nuts c3 precision ball screw according to customer drawing

Product Attributes :

1. Processing according to client's drawings

2. Ball screw material :aluminum, stainless steel ,bearing steel ,brass

3. Precision grade:C7 C3 C5 precision

4. Tolerance:+/-0.01mm ro +/- 0.005mm

5. Logo:customer logo avalable

6. Service : provide final processing drawing



Product Description



         There is a component on the machine tool that is made of a slender metal rod.The c3 ball screw has a very smooth surface, and some also have a threaded ball screw design.Generally, the threaded surface on the machine tool is called a c3 ball screw.

         According to the national standard GB/T17587.3-1998 and application examples, the c3 ball screw (which has basically replaced the trapezoidal screw and is commonly known as the screw) is used to convert rotational motion into linear motion; or convert linear motion into rotational motion. It has the characteristics of high transmission efficiency and accurate positioning.

          The c3 ball screw is a slender and flexible shaft. Its length L and diameter d ratio is very large, generally 20 to 50, and its rigidity is poor. The structure and shape are complex, and  has high thread surface requirements,as well as steps, grooves, etc。Therefore, the c3 ball screwn is prone to deformation during processing.

Product name:

C3 high precision ball screw

Application industries

Manufacturing plant, energy &mining, industry,machine manufacturer

Features

C3 C5 precision, good stability,  smoothly operation

Hardness

HRC58-62,steel balls :HRC60 UP

Processing

Rolling thread,Grinding

Packing

Carton+plastic bag+wooden box

Accuracy:

C3 C5 precision

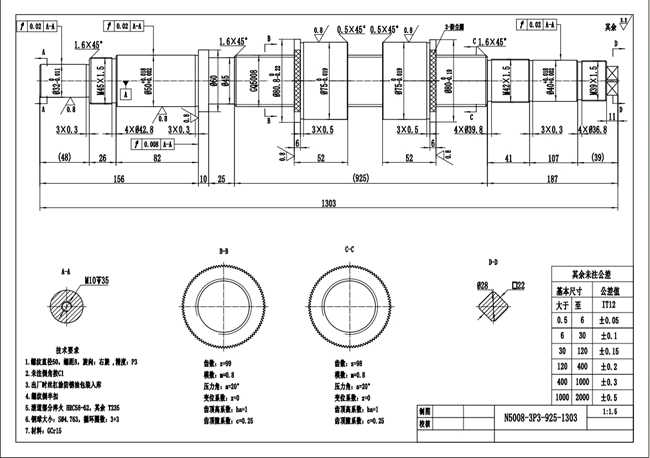

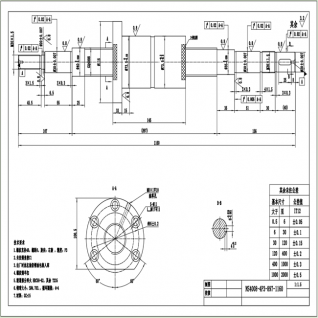

Customer drawings

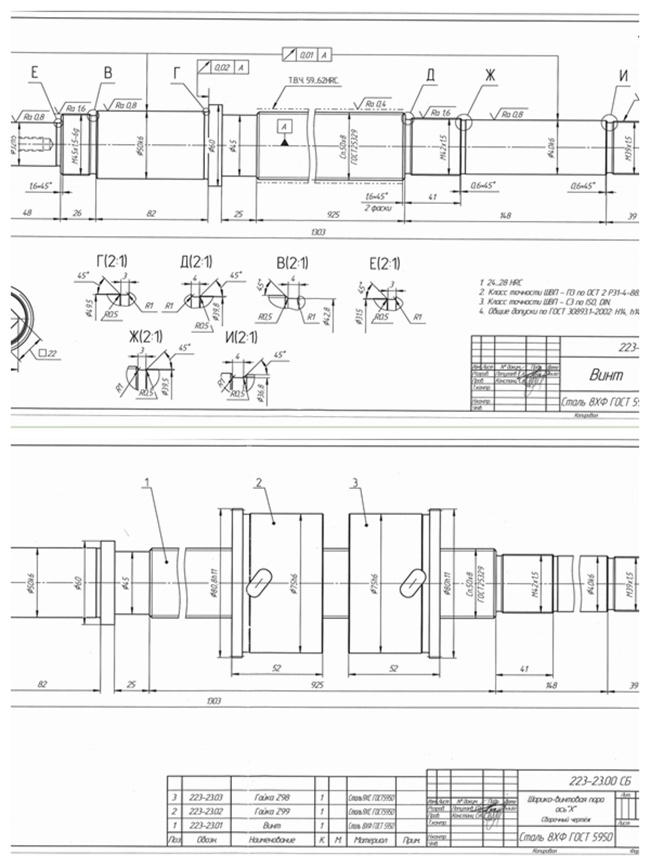

Final precessing drawing

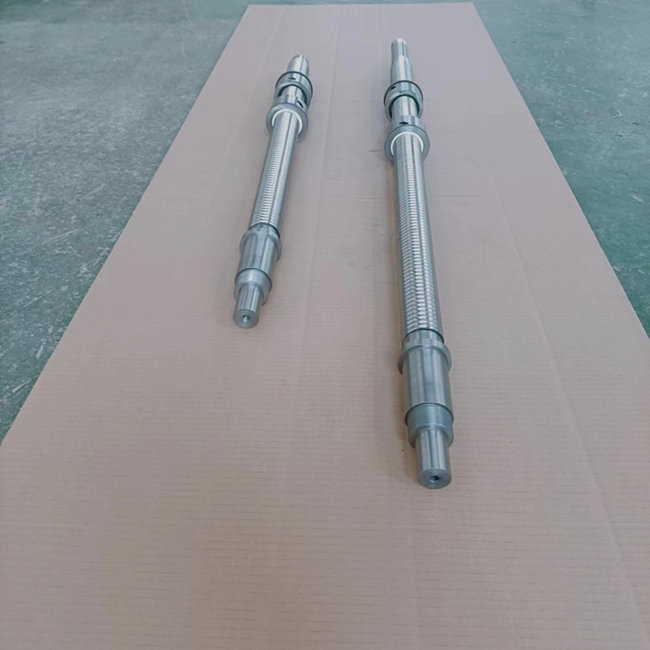

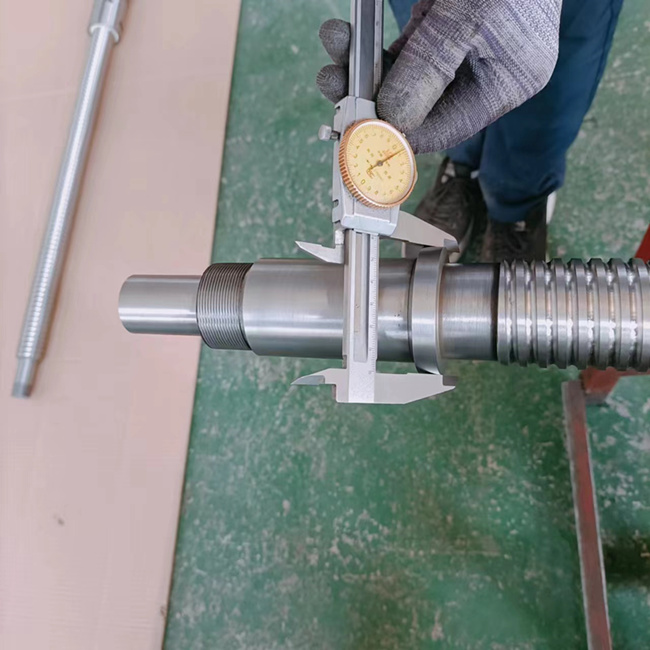

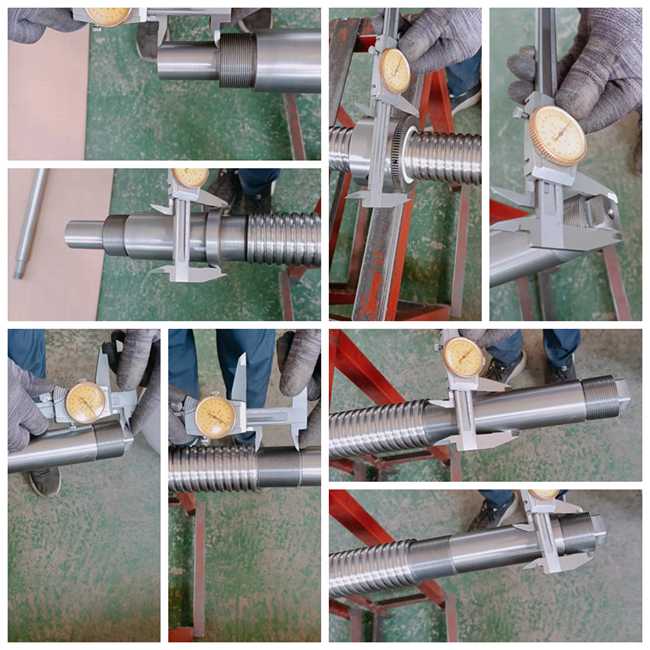

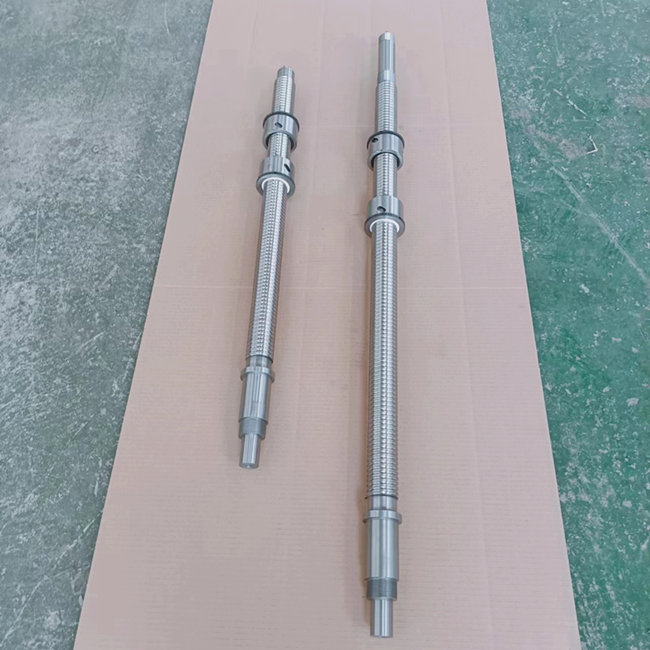

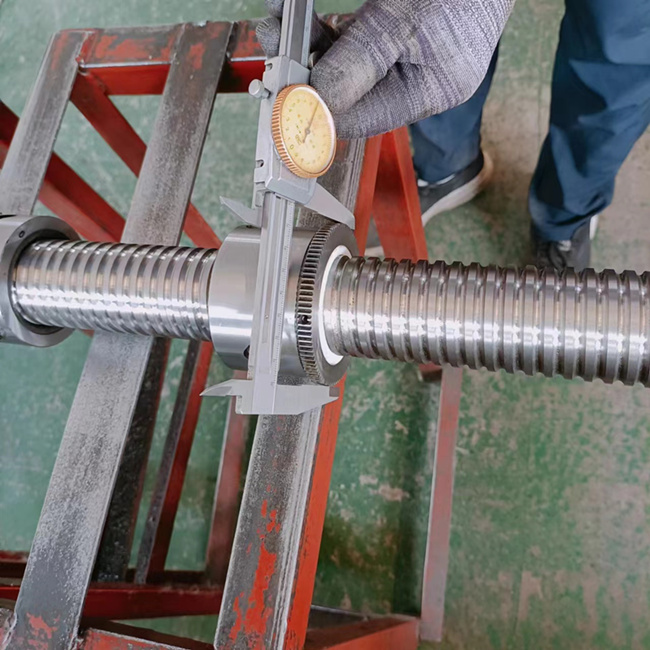

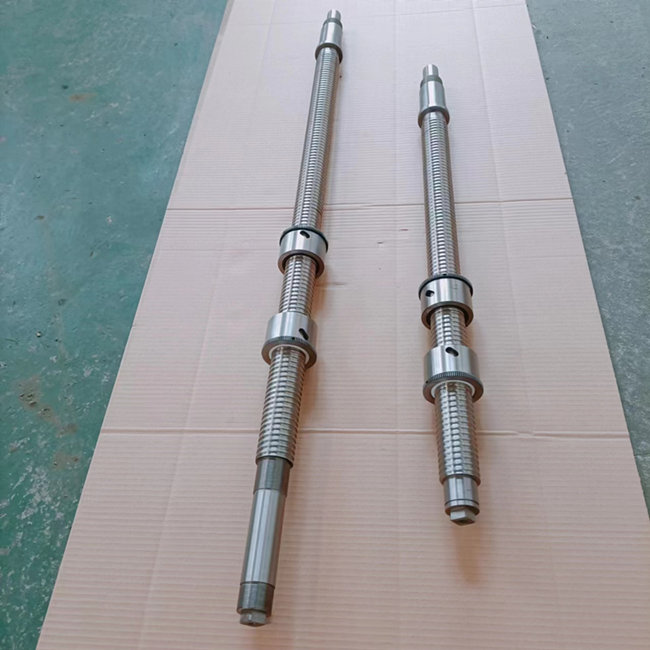

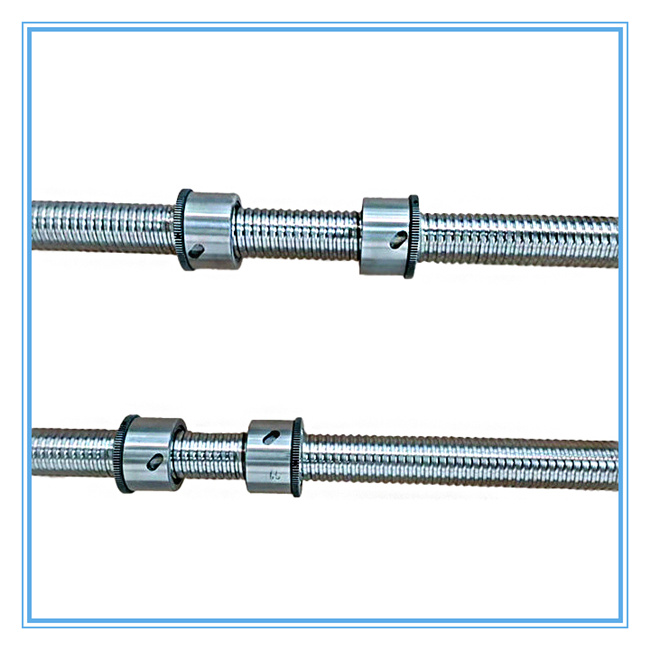

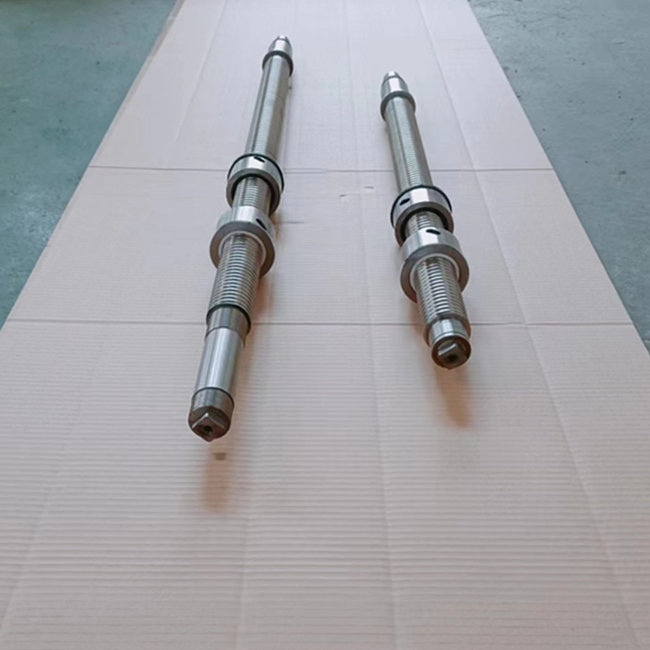

Product details
