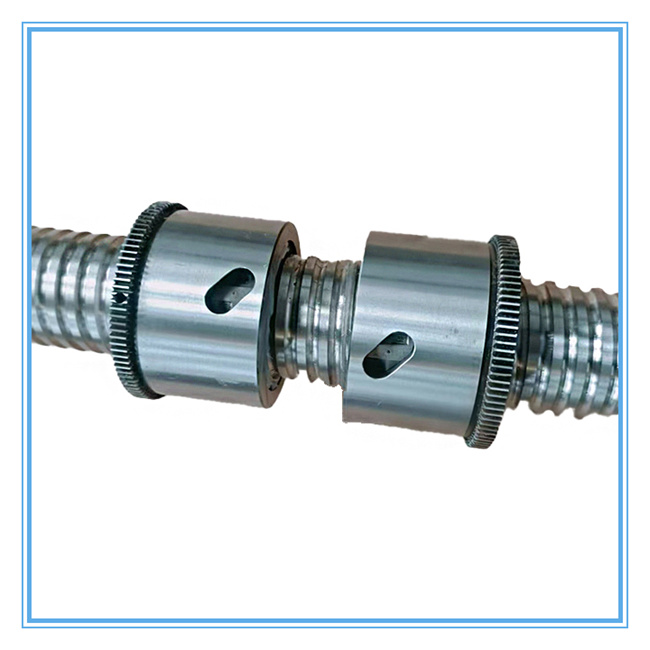

CNC machine part ball screw C3 C5 C7 precision ground processing and milling process
1. Process :C3 C5 precision -grinding processing
2. Packing:according to customer's request, Plastic bag +Bubble Wrap+Plywood box
3.A set=1pcs ball screw +1pcs ball nut , the length will be processed according to client's drawing
4. Quality :Guarantee C3precision ,provide paper test report
Pre-tightening level selection of ground ball screw:
The diameter of the screw determines its load capacity. The larger the diameter, the stronger the load capacity.
The lead determines the linear movement distance of the screw per rotation. The larger the lead, the faster the movement speed.
The length of the ground ball screw needs to be selected according to the actual application requirements and must meet the working stroke and installation requirements.
Ground ball screw thread types include trapezoidal threads, ball threads, etc. Different types of threads have different transmission efficiency, load capacity and wear resistance.
Material and heat treatment process load distribution analysis
Establish an equivalent force model of the ball of the ground ball screw pair to analyze the force of the ball when subjected to external loads to more accurately understand the load distribution.
Consider the influence of geometric errors such as screw and nut processing errors and installation errors on ball load, and optimize the design and use of ground ball screw pairs.
Although most of the current simplified analysis is that the ball is uniformly loaded, in actual applications, attention should be paid to non-uniform loading to ensure the reliability and durability of the ball screw pair.

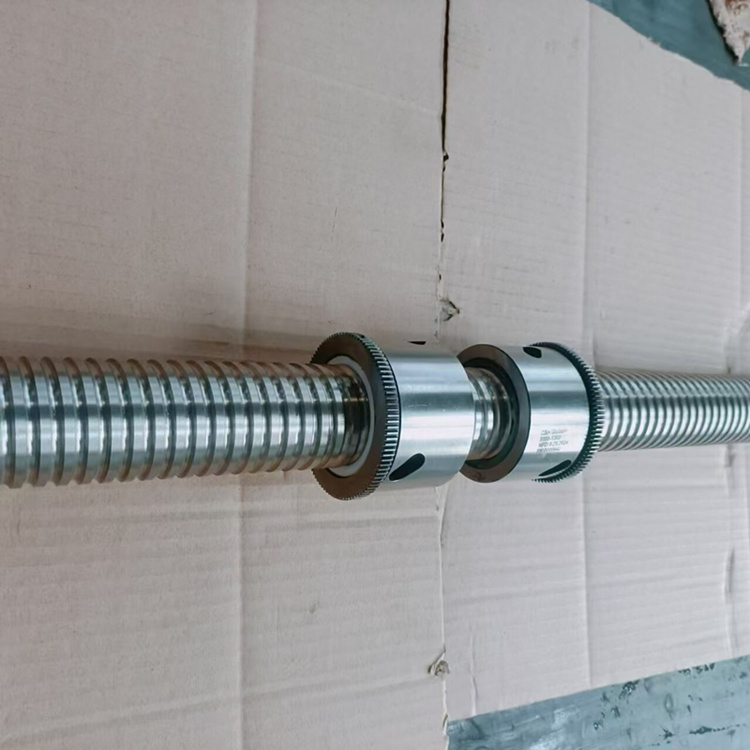

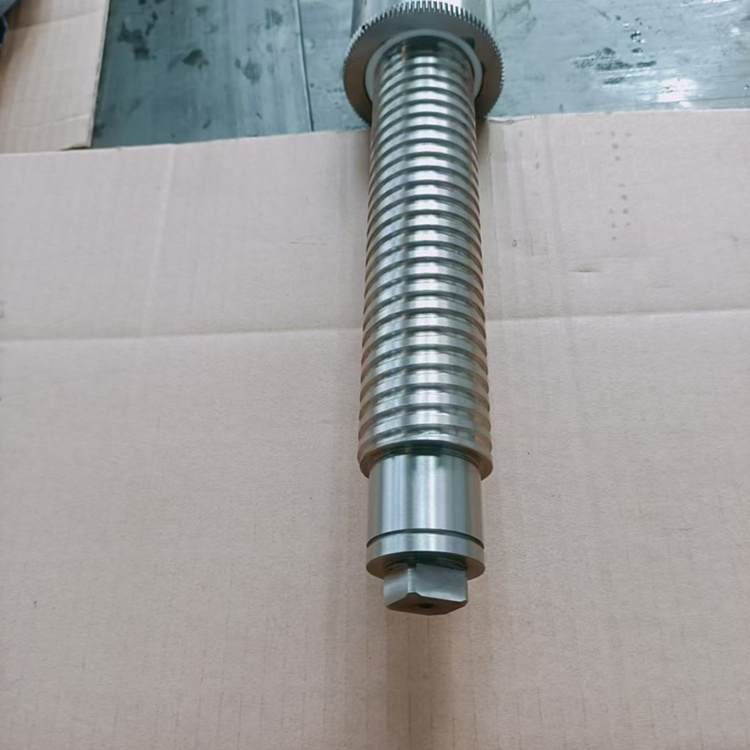

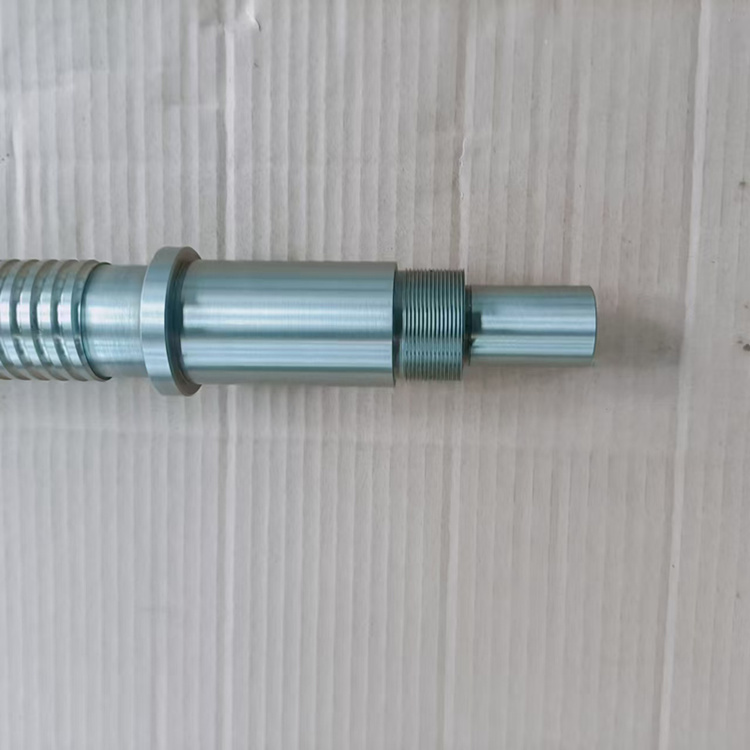

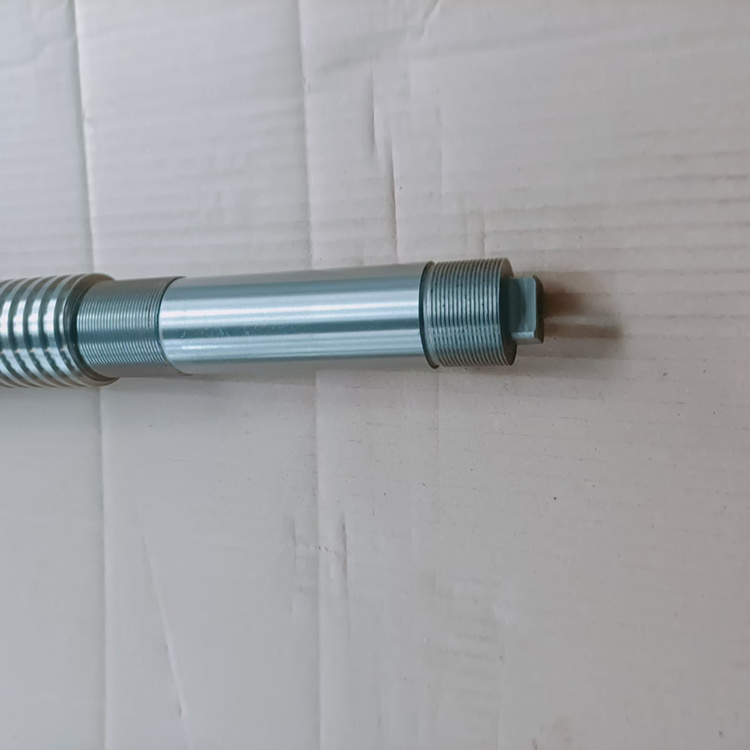

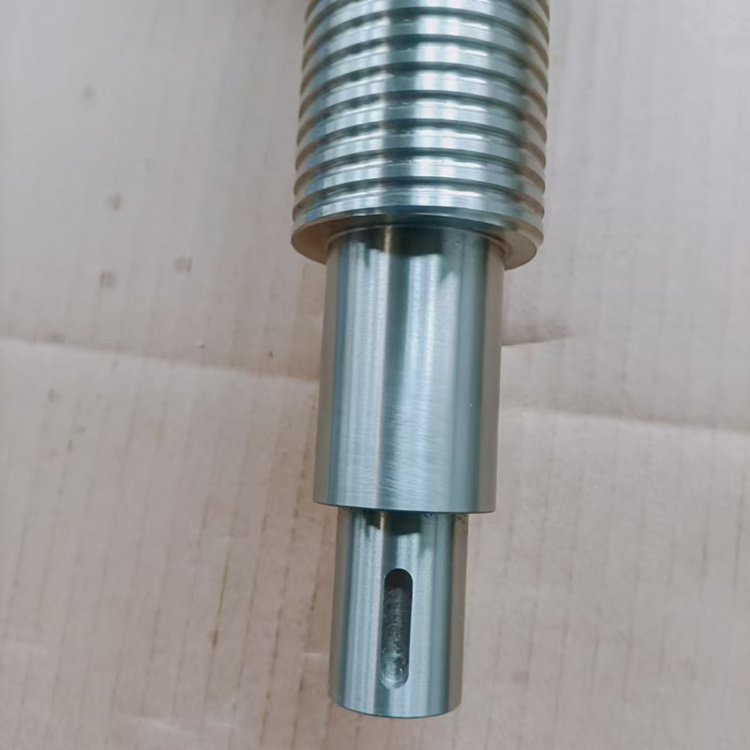

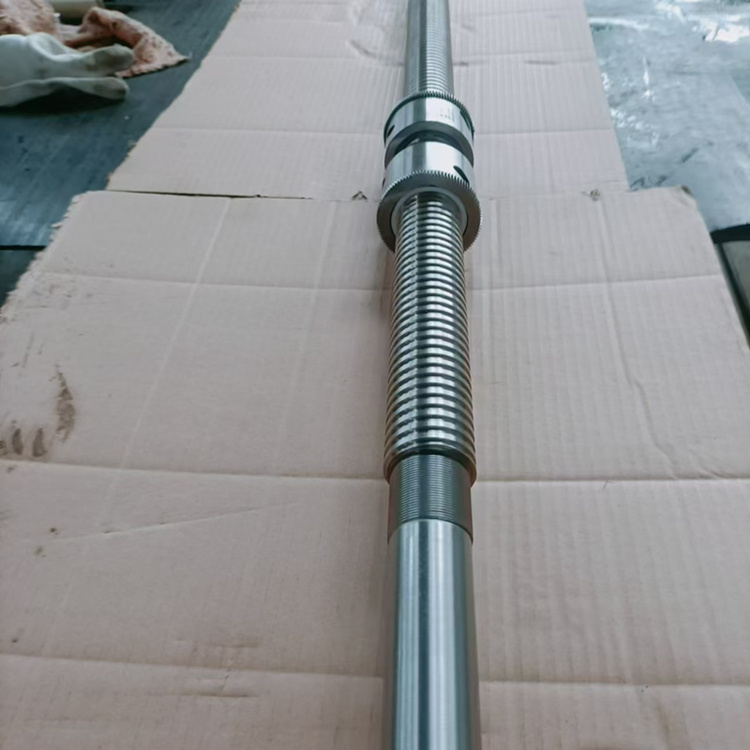

Finished product

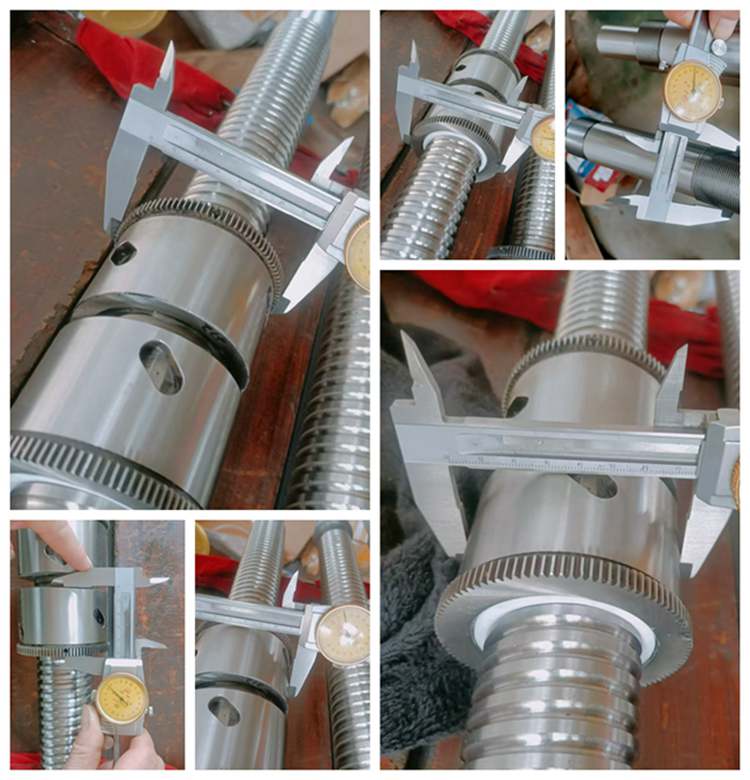

Remeasure the size
