Manufacturer provide high load C3 precision linear motion ball screw in cnc
1. Process :,C3 C5 precision -grinding processing
2. Packing:according to customer's request, Plastic bag +Bubble Wrap+Plywood box
3.A set=1pcs ball screw +1pcs ball nut , the length will be processed according to client's drawing
4. Quality :Guarantee C3precision ,provide paper test report

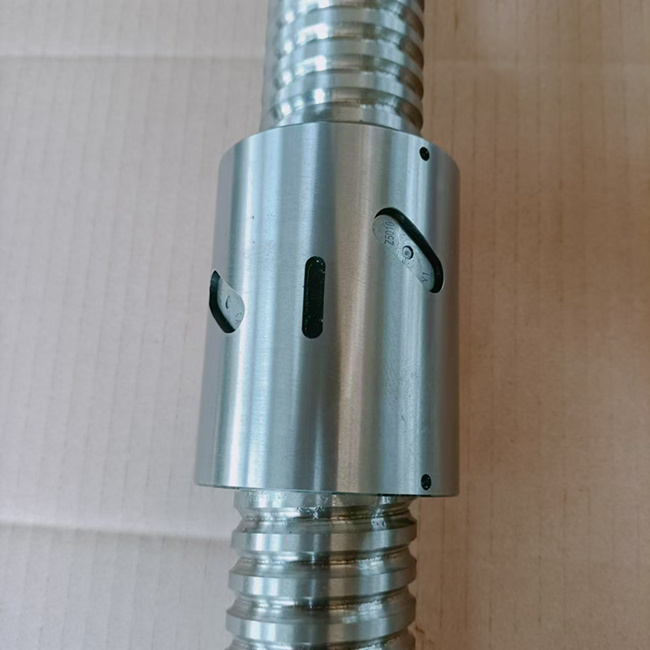

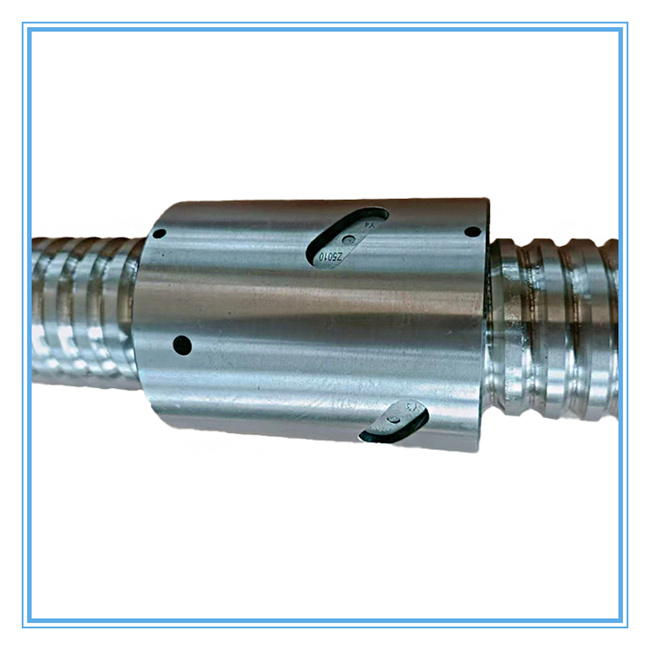

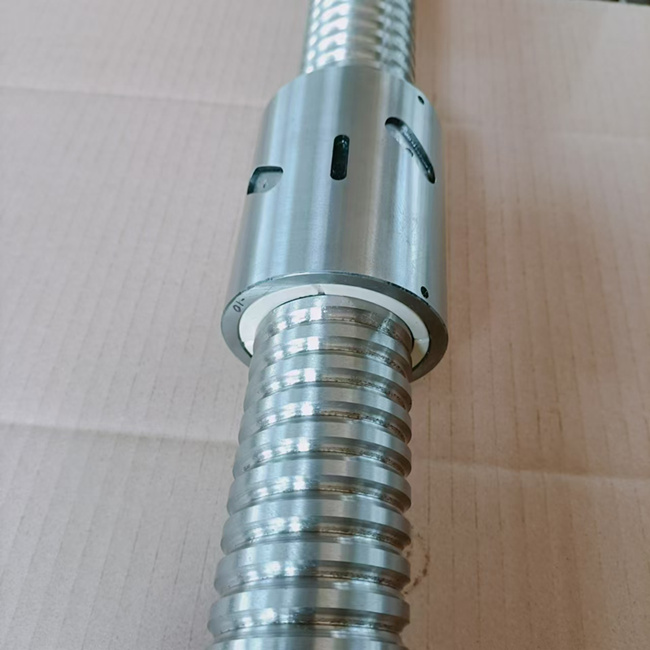

The ball nut is the core component of the ball screw mechanism.
When the high load ball screw mechanism is running, the ball nut cannot bear radial load or torque load, and can only accept load along the axial direction of the high load ball screw. In addition, it is necessary to make sure that the axial load acting on the high load ball screw passes through the screw axis.
When designing, radial load and torque load can‘t’be directly applied to the nut, otherwise it will greatly shorten the life of the high load ball screw mechanism or cause poor operation, because radial load or torque load will cause the screw to bend and some balls in the nut to be overloaded, resulting in unstable transmission, reduced accuracy, and a sharp shortening of life.

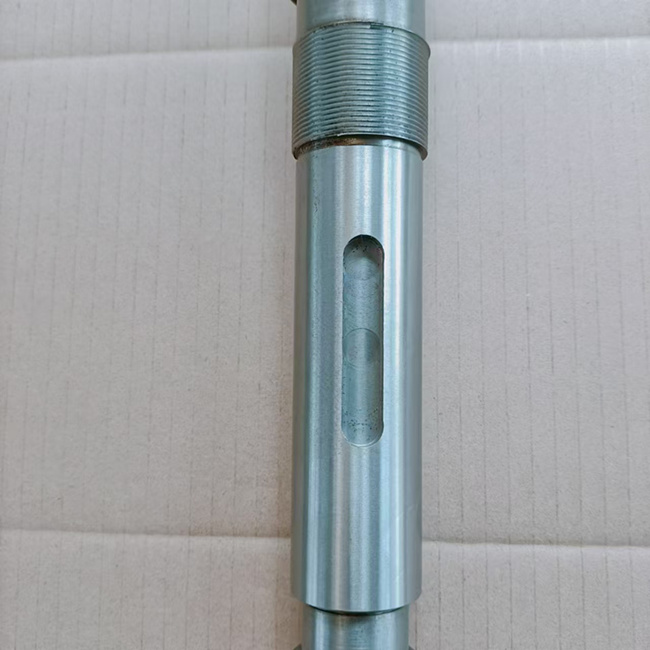

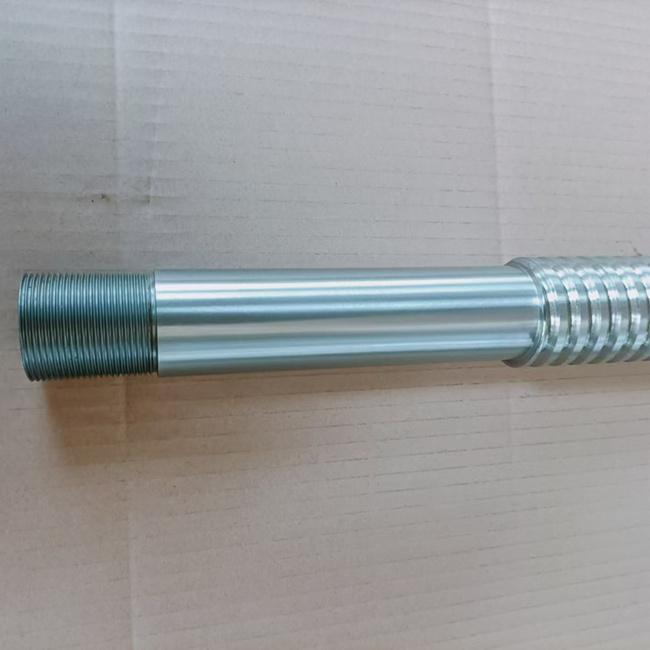

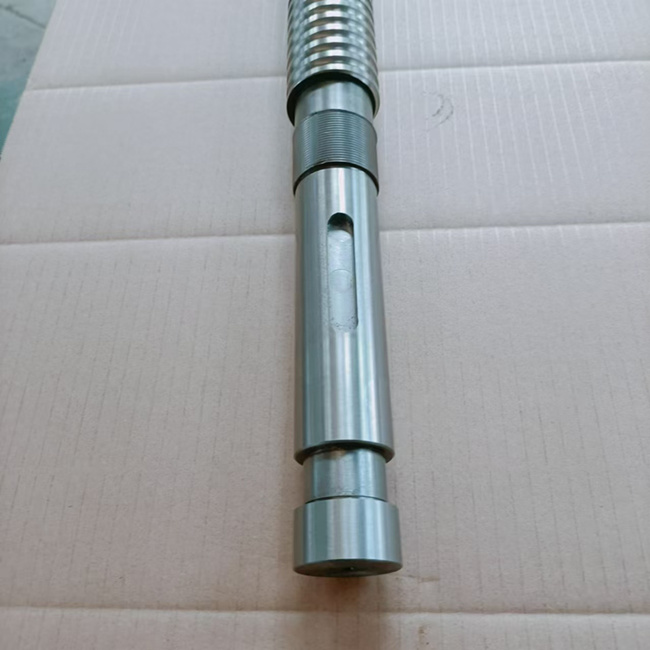

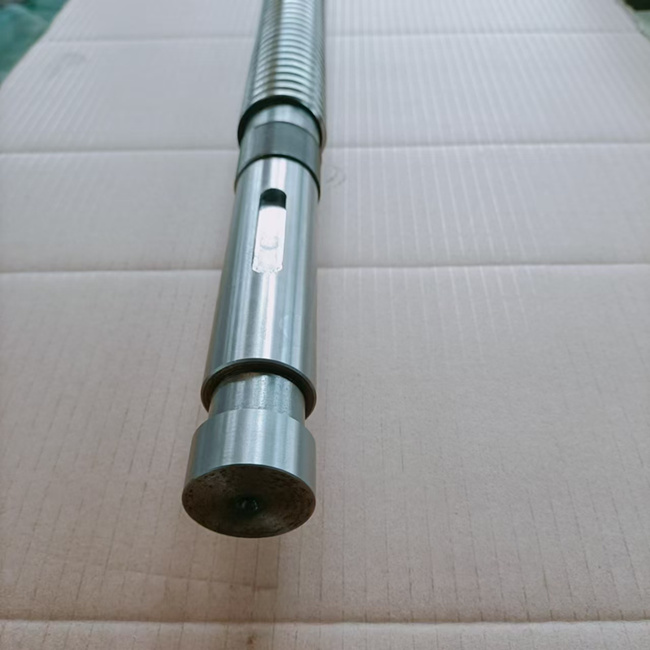

Finished product

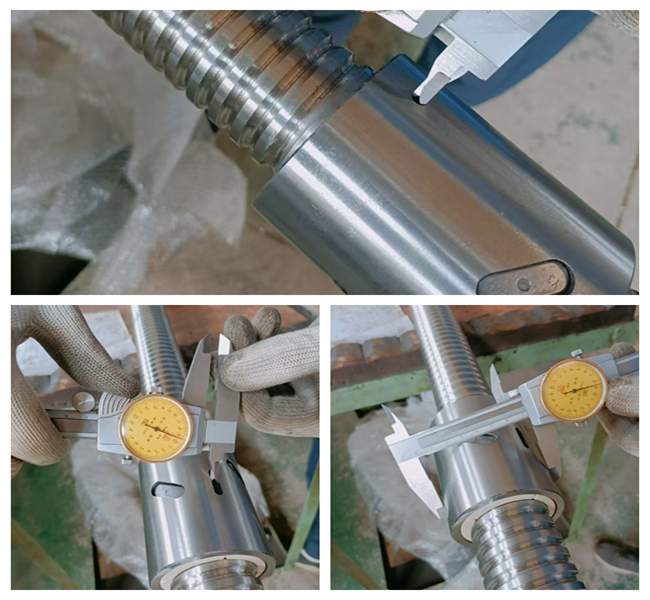

Dimension measurement
Tianjin Dingtai Sheng Transmission Technology Co., Ltd. is a factory specializing in the production of mid-to-high-end ball screw. It has accumulated more than 30 years of rich experience and covers an area of more than 50,000 square meters.
