Support Customization High Precision Ball Screw Set Large Hollow Ball Screw
Custom lead screws--Products Description
1. Support customization according to customer's drawings
2. Ball screw material :Gcr15 steel material;
3. Preciison C5 precision, C3 precision, C7 precision.
4. Features ：1. High reliability 2. Smooth movement
3. No backlash and high rigidity 4. Excellent durability
5. Length：100mm(it is the overall length, Including end machining part)
6. Applicable Industries:3Dprinter，CNCequipment，Food packing machinery，Linear module
Steel pipe cutting machine，and so on
Product description :
|
Gradel |
C7, C5, C3 for ball screw with external return tube |
|
Certification: |
ISO9001, SGS, CTI, ROHS |
|
Length |
From 10mm to 10000mm for ball screw with external return tube, can be customized based on customers requirement |
|
Material |
Bearing steel, alloy steel, GCr15 and so on |
|
Production Process |
Cold Rolling, CNC Grinding, Whirling Milling |
|
Thread |
General right thread, part model can produce left thread. |
|
End machining |
1. We can make end machining or without end machining ball screw. 2.For end machining ball screw, if you have special requirement, please show us the drawing. 3. Moreover, we also make the components of ball screw, such as ball screw nut housing, ball screw end support, couplings, etc. |
Custom lead screws are classified into P level and T level, that is, transmission level and positioning level. There are several accuracy levels: 1, 2, 3, 4... Foreign custom lead screws generally do not distinguish between transmission level or positioning level when positioning. , all based on C0~C10 or specific values.
Custom lead screws general machinery or ordinary CNC machinery should choose C7 (positioning error within any 300 strokes ±0.05)，custom lead screws is less than high-precision CNC machinery should choose C5 (±0.018) or more and C3 (±0.008) or less, and optical or inspection machinery should choose C3. .
Custom lead screws are manufactured according to specific customer requirements and drawings. During the production process, molds, designs and specifications are customized according to the drawings. custom lead screws will not be sold to third parties without the written consent of the customer.
Product advantage :
Ball screw classification and the series we can process
Support customization according to customer's drawings

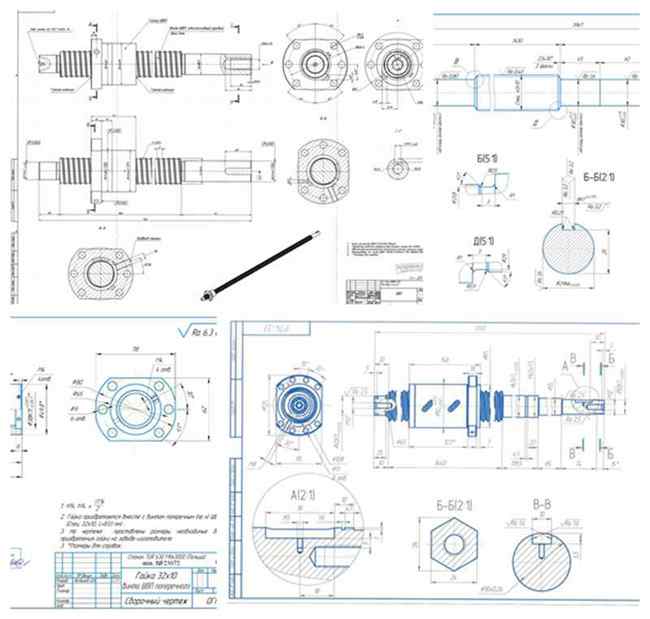

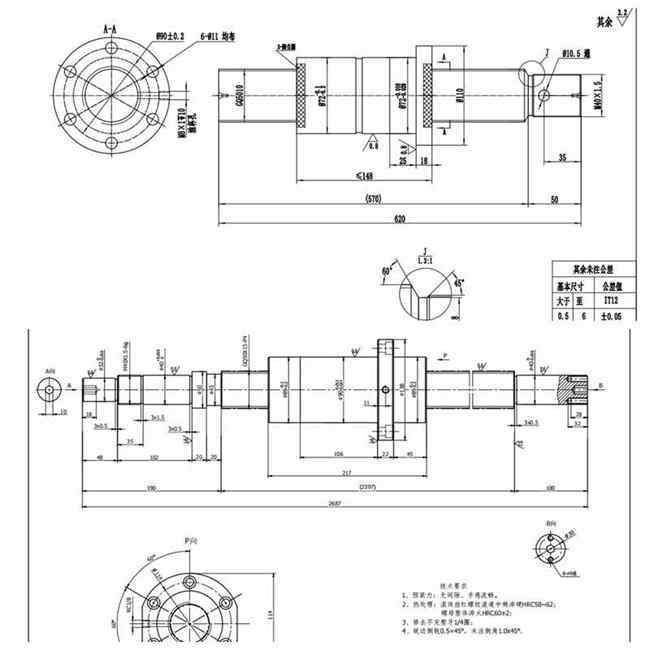

Designed final processing drawings based on customer's drawings

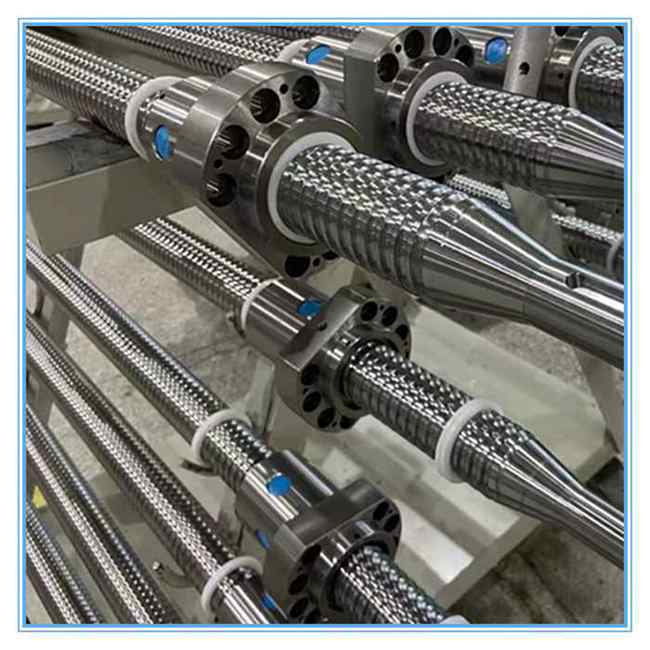

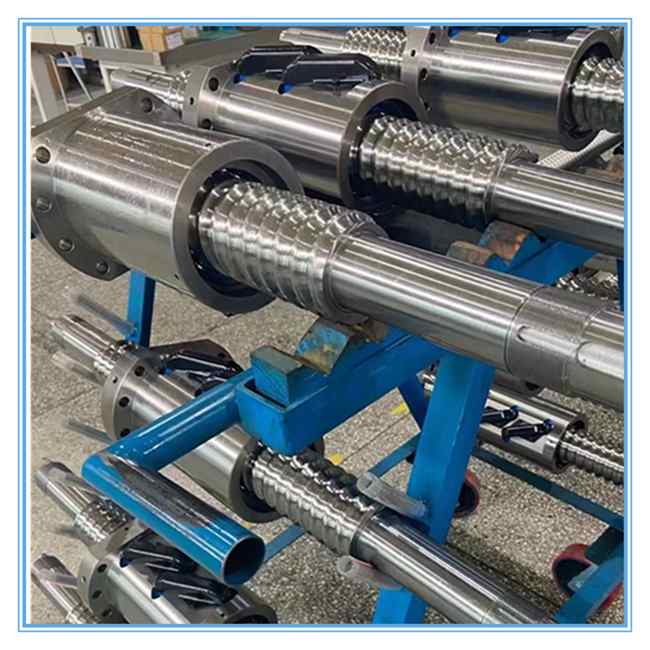

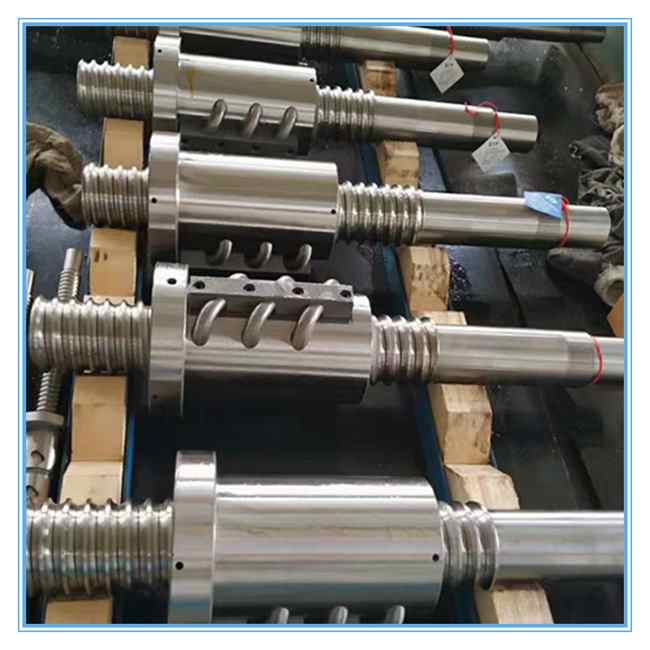

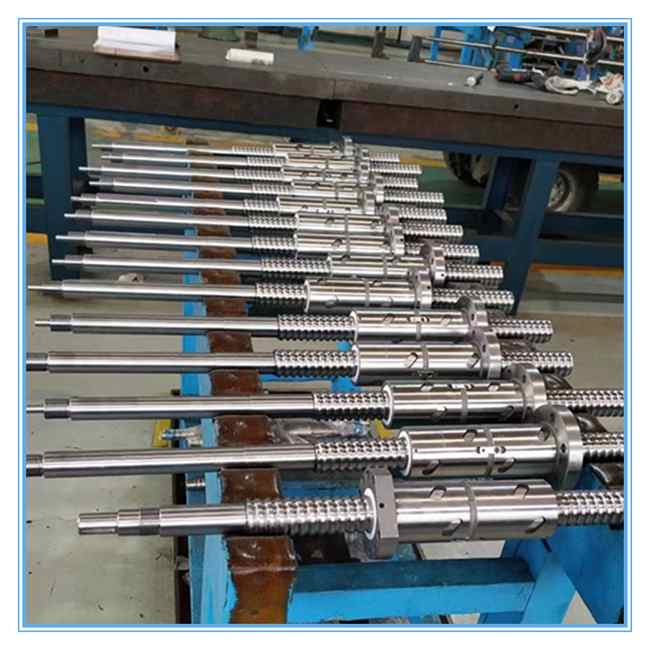

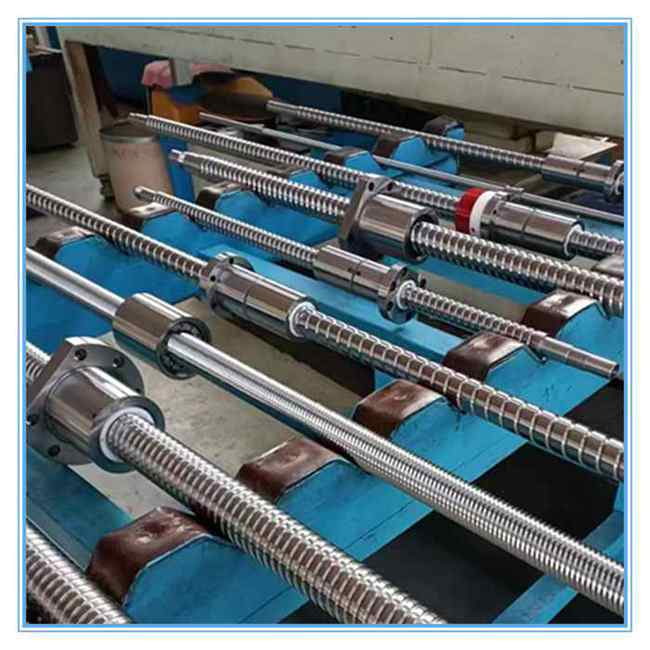

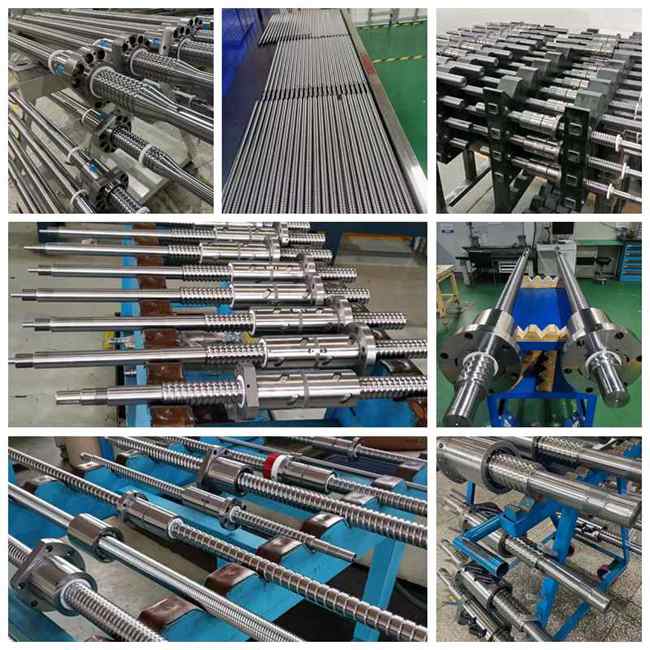

Finished goods

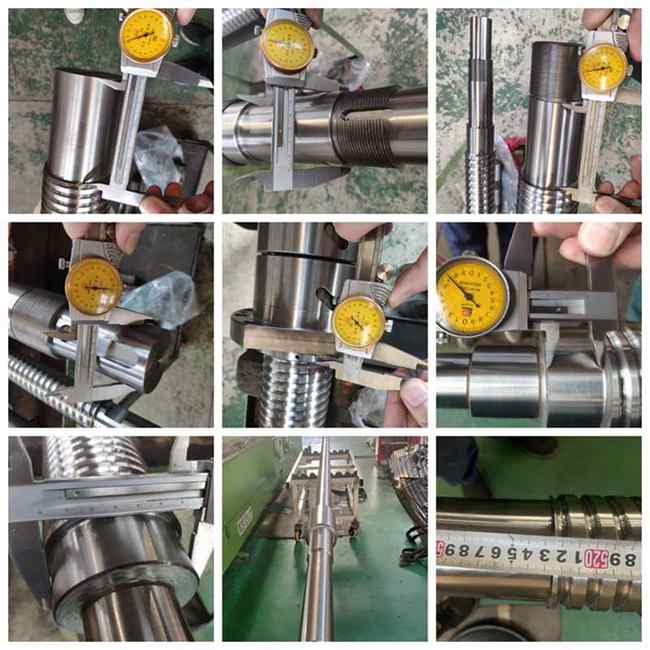

Inspection before leaving the factory
Application:
Custom lead screws Application:Automation industry, Semi-conductor industry, Industrial machine, Medical industry, Green energy industry, Machine tool, Automated storage and retrieval system and etc.
Tianjin Dingtai Sheng Transmission Technology Co., Ltd. is a factory specializing in the production of mid-to-high-end ball screw. It has accumulated more than 30 years of rich experience and covers an area of more than 50,000 square meters.
